500kV transmission towers and conductors on the Shanggao outgoing project in Jiangxi

China / Shanggao, Yichun, Jiangxi

Shanggao Power Plant 500kV Outgoing Project

500kV

LocationShanggao, Yichun, Jiangxi

Line level500kV

Recorded scope30.863 km / 72 towers

Recorded timingCompleted, Oct 2025

Project context.

This public project record covers the 500kV outgoing works from Shanggao Power Plant in Shanggao County, Yichun, including the Yichun–Jinjiang line and its connection at Jinjiang 500kV substation.

Project evidence

Selected field images from the available project record.

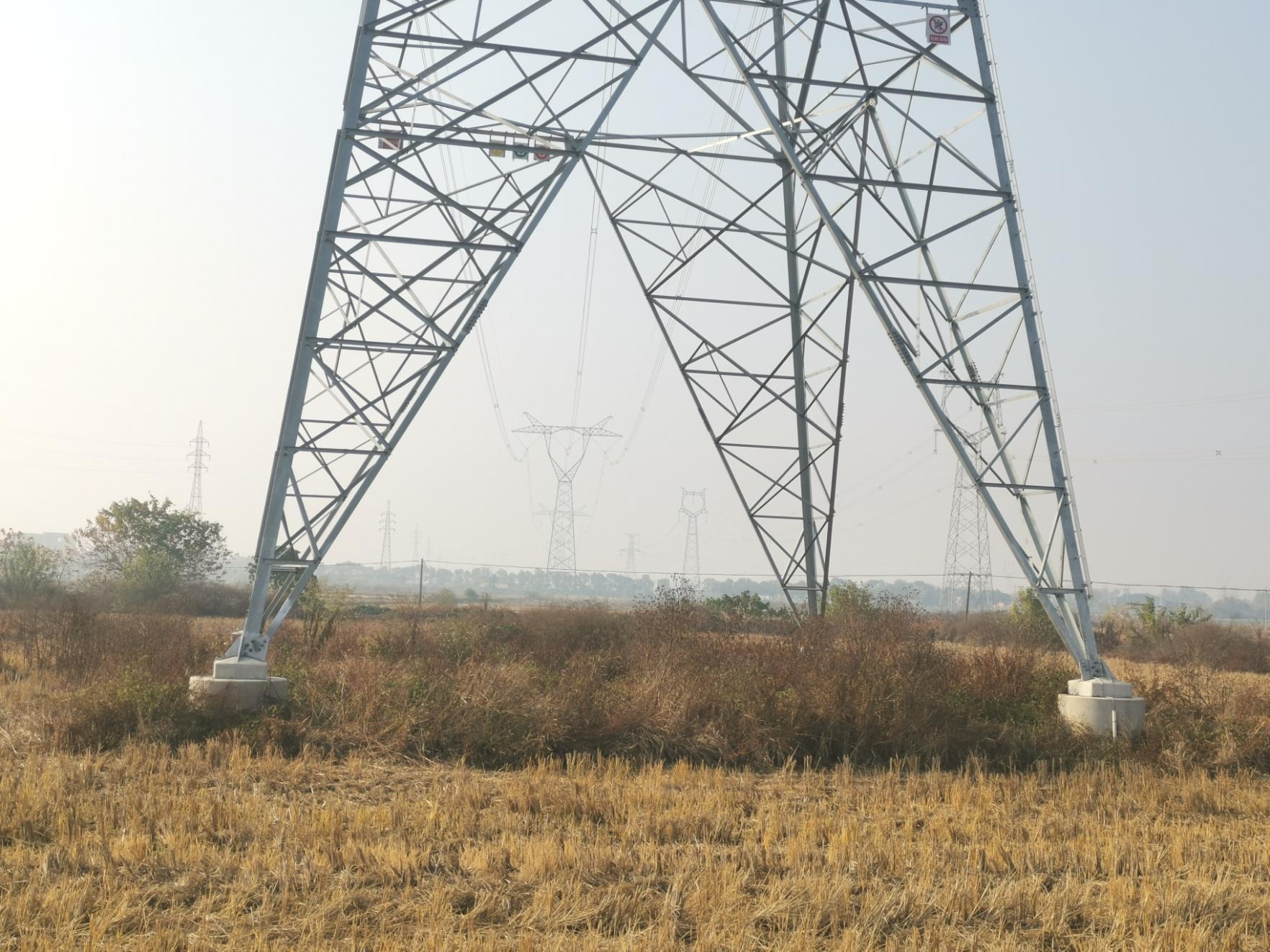

Shanggao Power Plant 500kV Outgoing Project field record 1 — Tower foundation structure

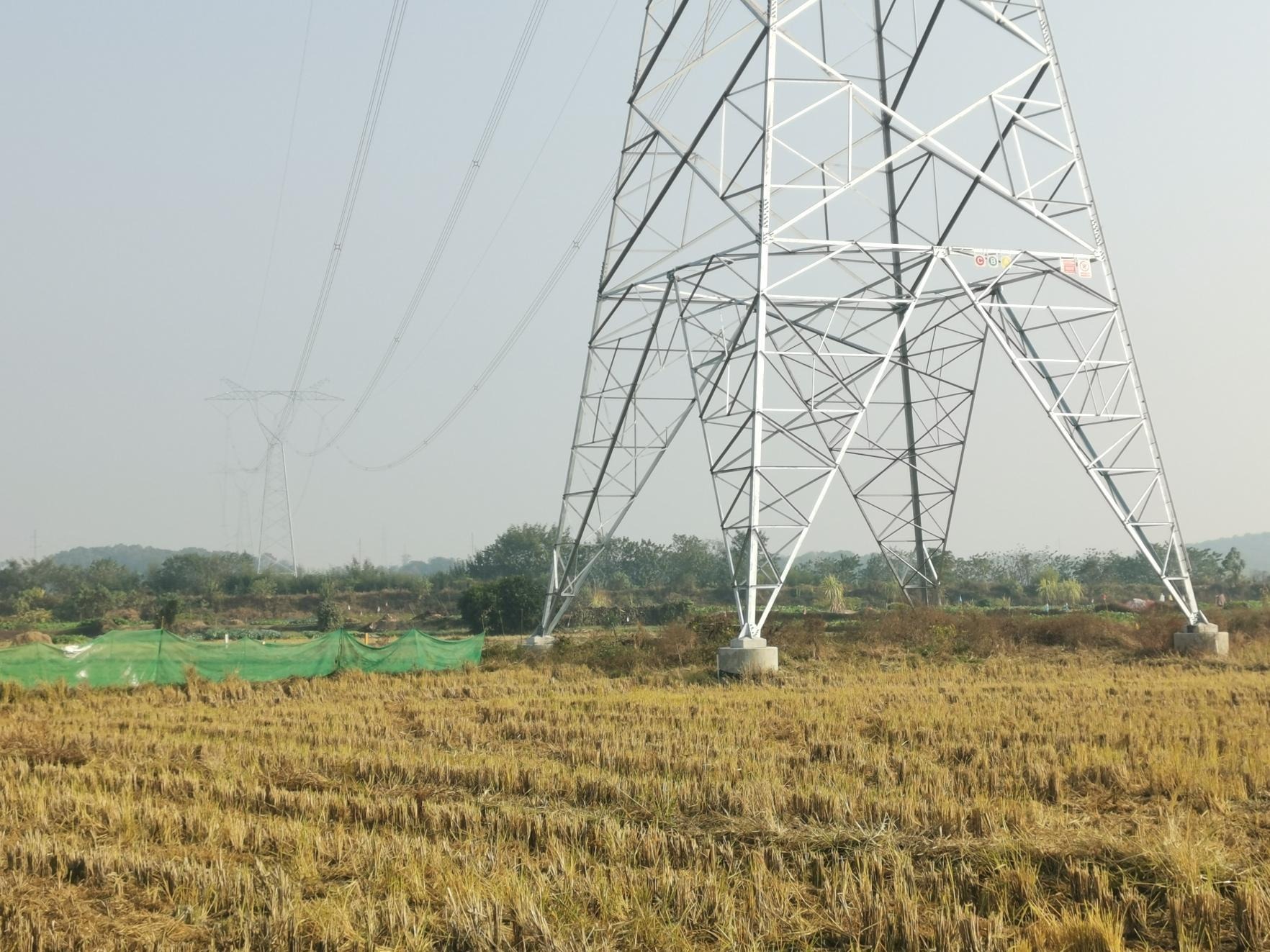

Shanggao Power Plant 500kV Outgoing Project field record 2 — Line tower in field

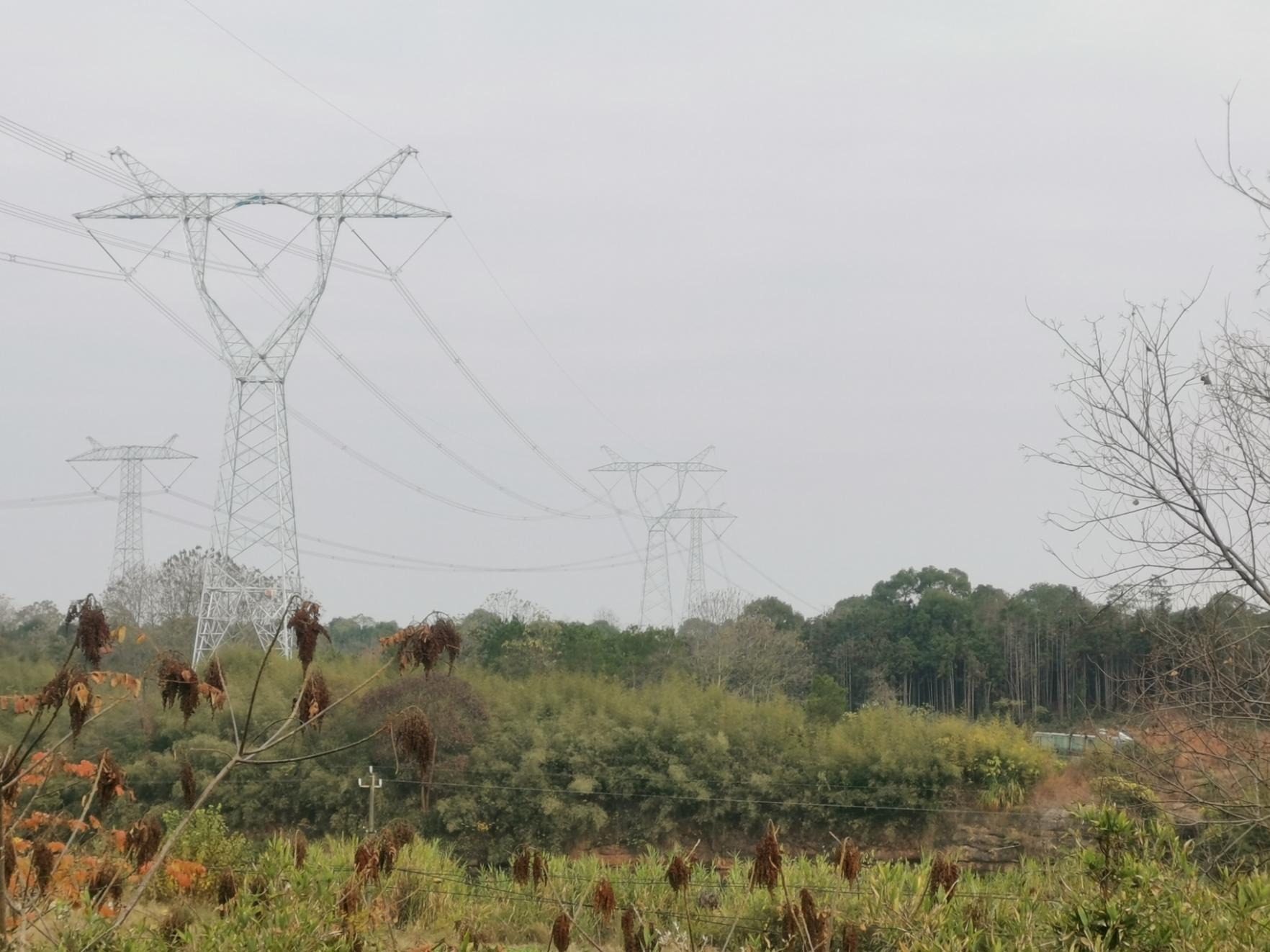

Shanggao Power Plant 500kV Outgoing Project field record 3 — Tower connection detail

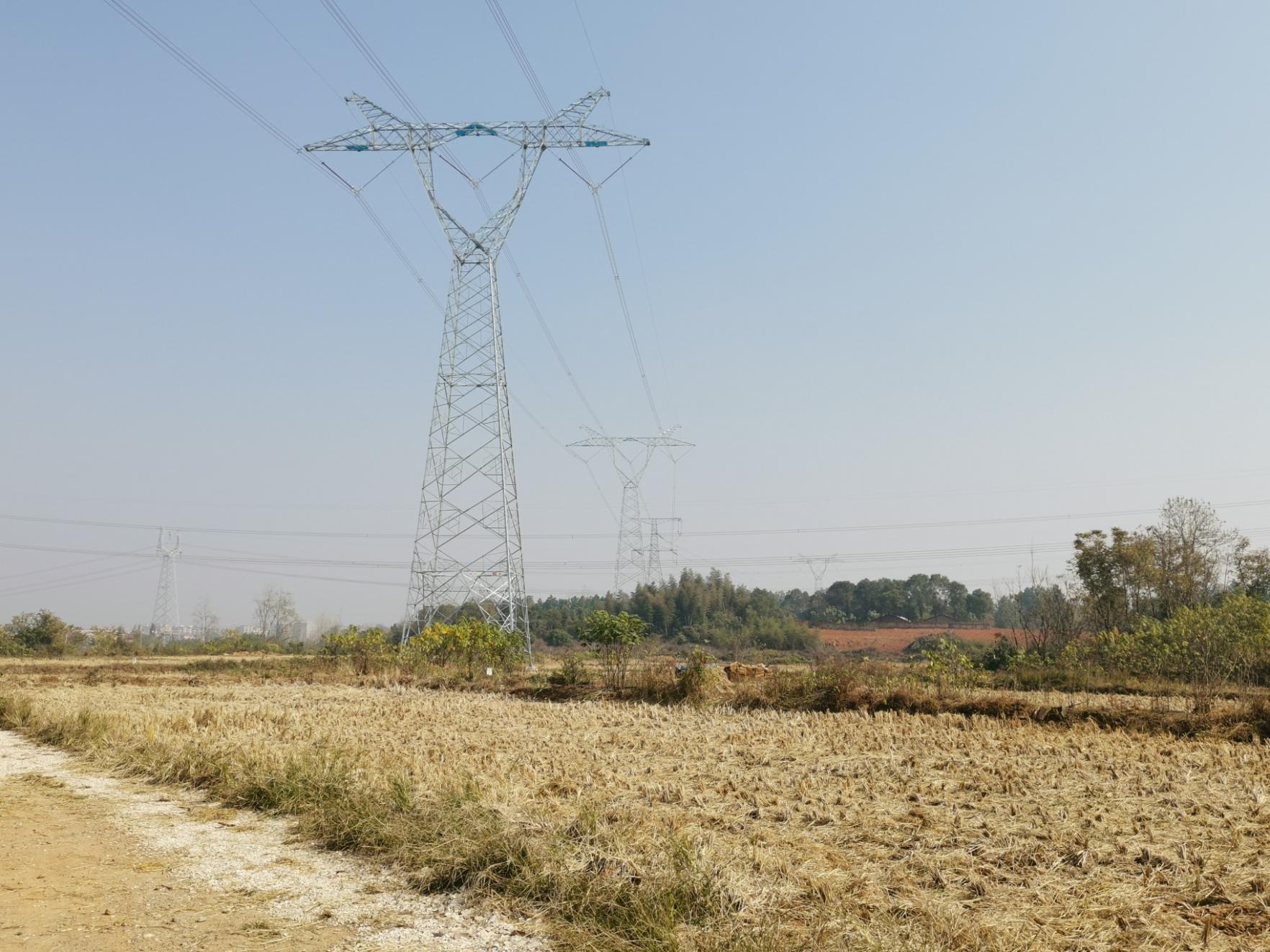

Shanggao Power Plant 500kV Outgoing Project field record 4 — Long-distance line corridor
