Indoor transformer equipment at the Jiuzhou Yunfei 110kV substation in Nanchang

China / Nanchang, Jiangxi

Nanchang Jiuzhou (Yunfei) 110kV Substation Project

110kV

LocationChaoyang New Town, Nanchang

Main transformation2 x 63 MVA

110kV connectionTwo outgoing intervals

Recorded timingCommissioning, Dec 2025

Project context.

This public project record covers the Jiuzhou (Yunfei) 110kV substation in Chaoyang New Town, Xihu District, Nanchang. The indoor station is documented through equipment, transformer and station-perimeter field photographs.

Project evidence

Selected field images from the available project record.

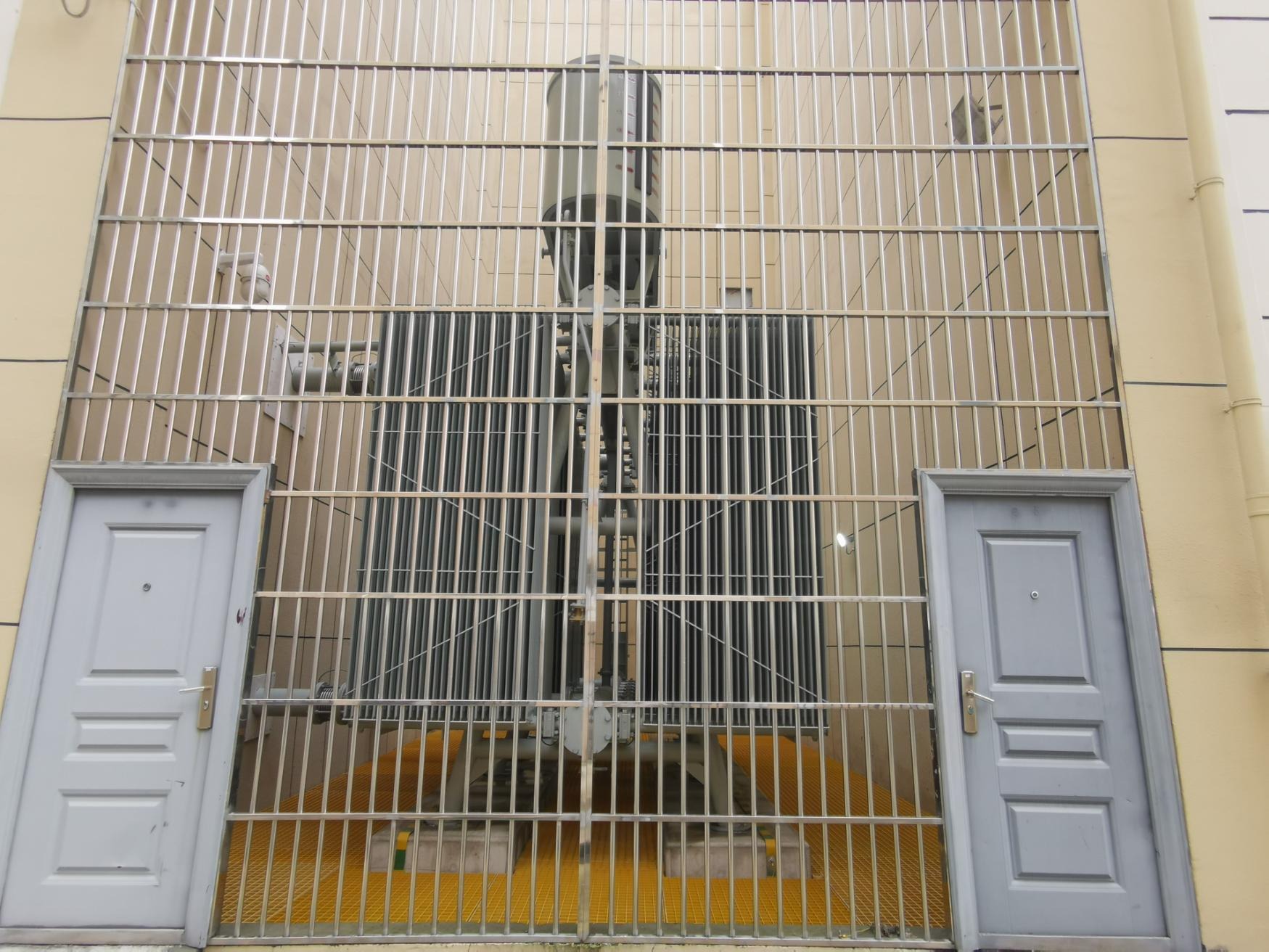

Nanchang Jiuzhou (Yunfei) 110kV Substation Project field record 1 — Transformer enclosure

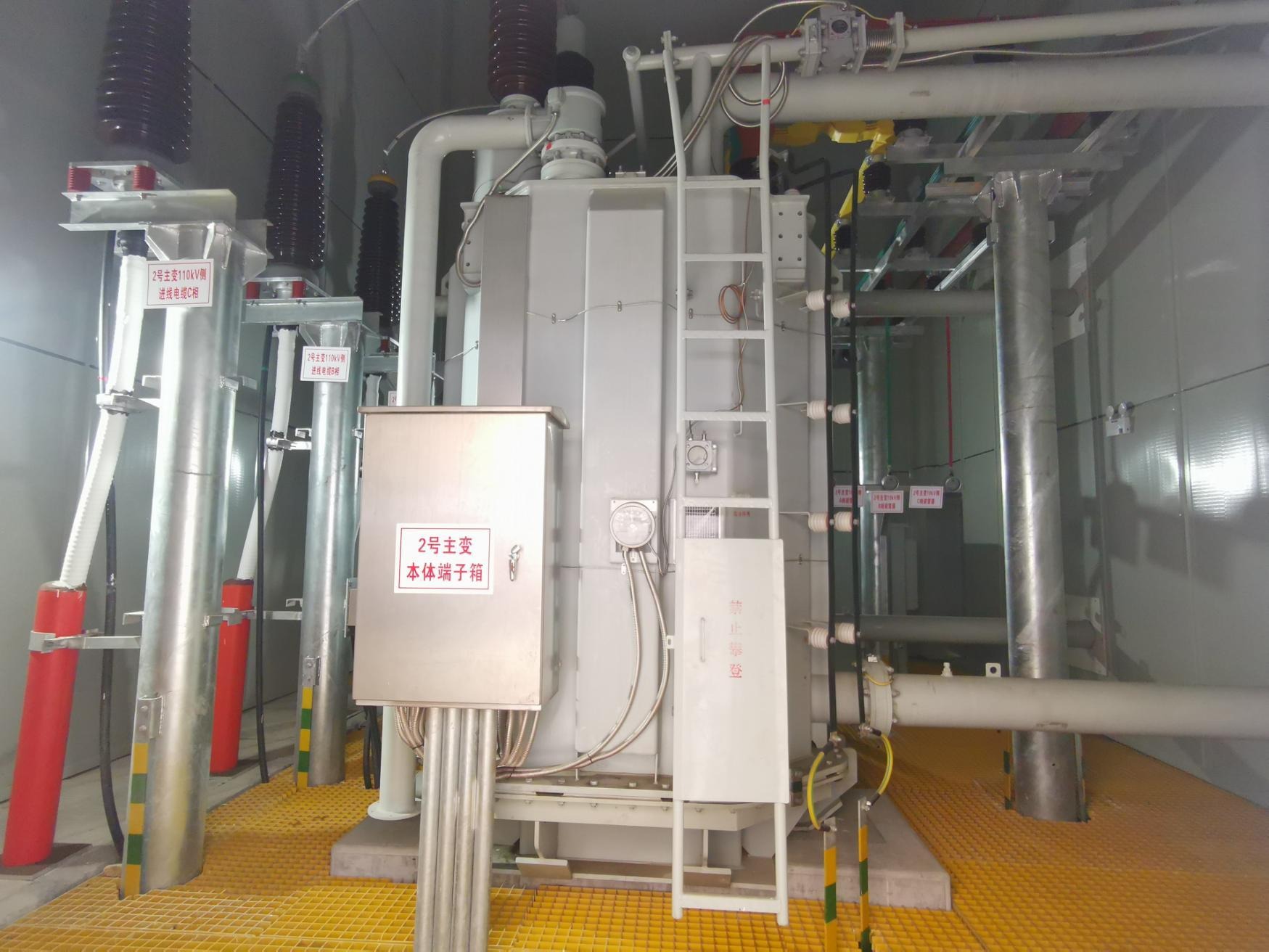

Nanchang Jiuzhou (Yunfei) 110kV Substation Project field record 2 — Station equipment room

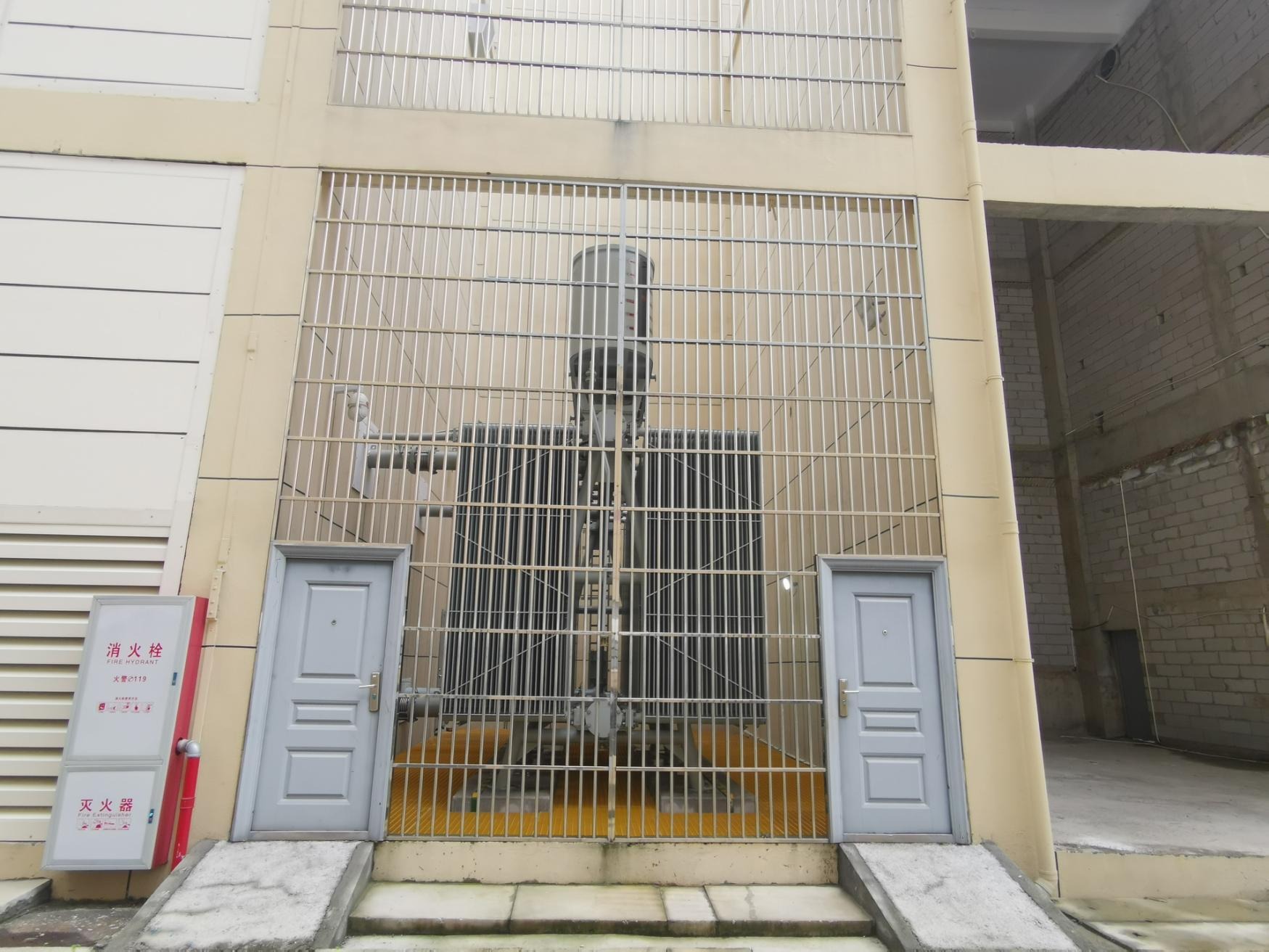

Nanchang Jiuzhou (Yunfei) 110kV Substation Project field record 3 — Completed station interface
