110kV transmission towers and outgoing-line works recorded near Ji'an Tianyu substation

China / Ji'an, Jiangxi

Ji'an Tianyu 220kV Transmission & Transformation Project – 110kV Outgoing Works

110kV

LocationJi'an, Jiangxi, China

Line level110kV outgoing works

Recorded routes8 line sections

Tower foundations53 new foundations

Project context.

This public project record covers the 110kV outgoing works associated with the Tianyu 220kV transmission and transformation project in Qingyuan District and Ji'an County, Jiangxi. The 220kV station works were previously accepted; this record focuses on the current 110kV line scope.

Project evidence

Selected field images from the available project record.

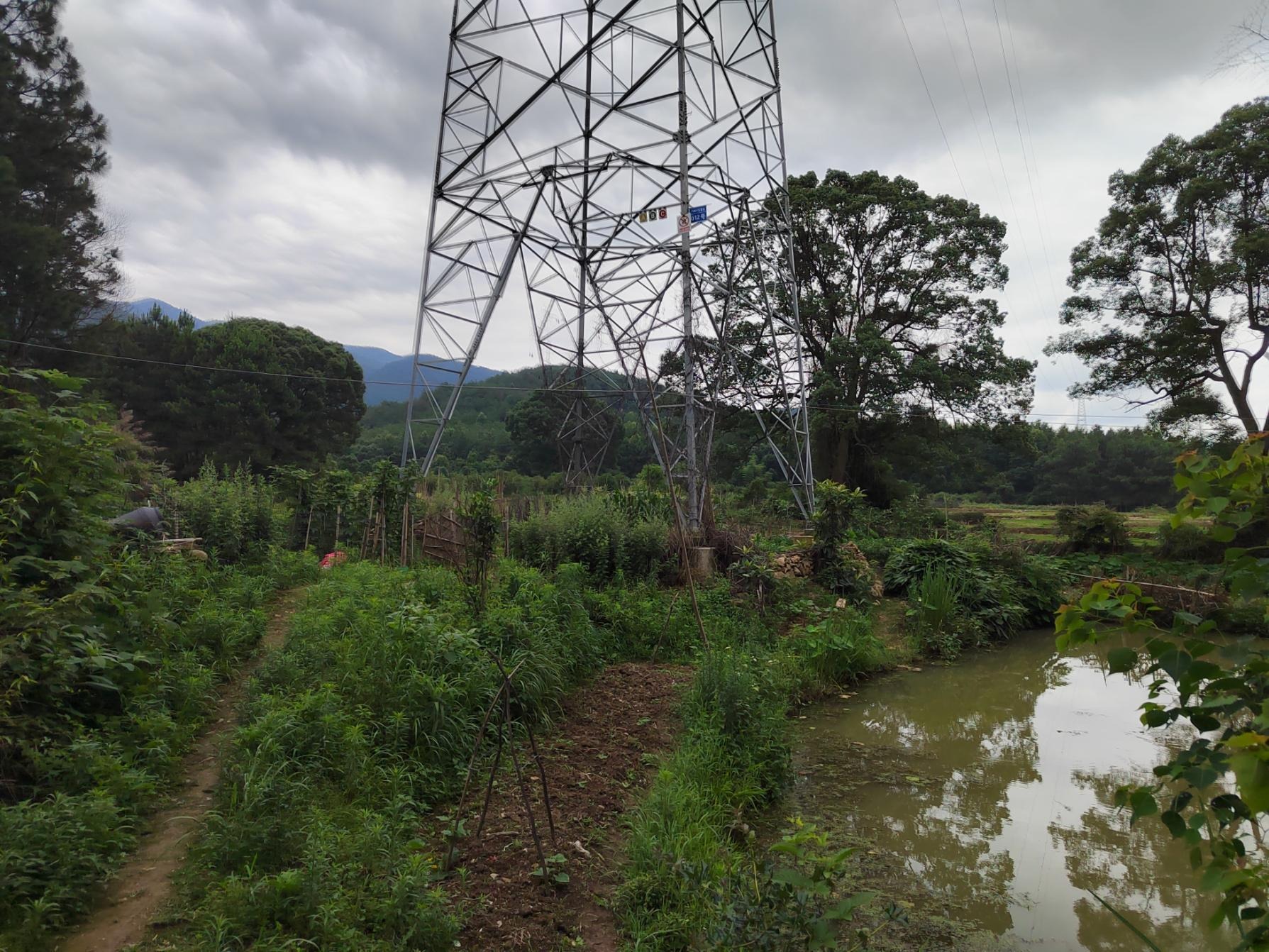

Ji'an Tianyu 220kV Transmission & Transformation Project – 110kV Outgoing Works field record 1 — Tower and line landscape

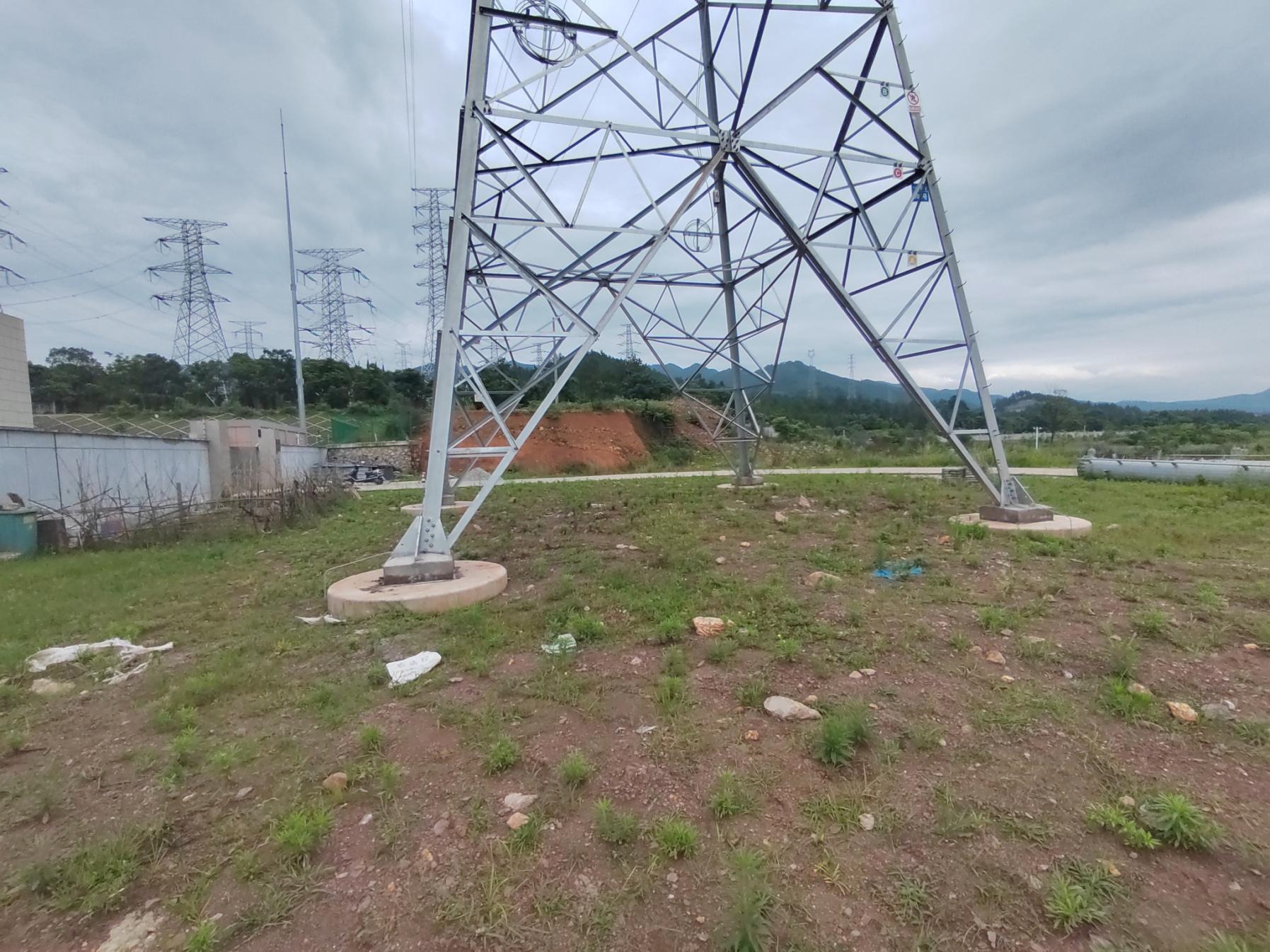

Ji'an Tianyu 220kV Transmission & Transformation Project – 110kV Outgoing Works field record 2 — Tower foundation context

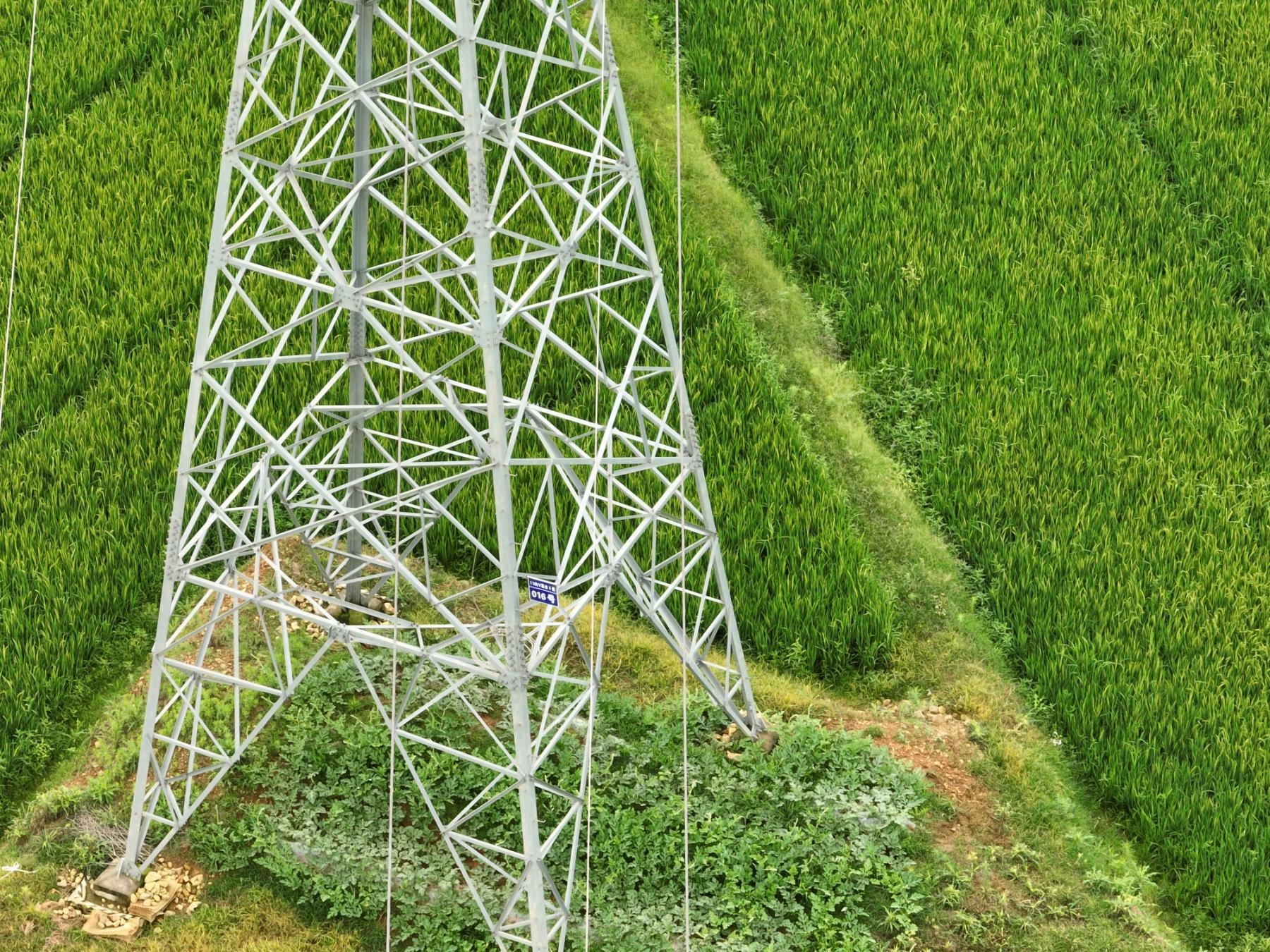

Ji'an Tianyu 220kV Transmission & Transformation Project – 110kV Outgoing Works field record 3 — Tower base detail

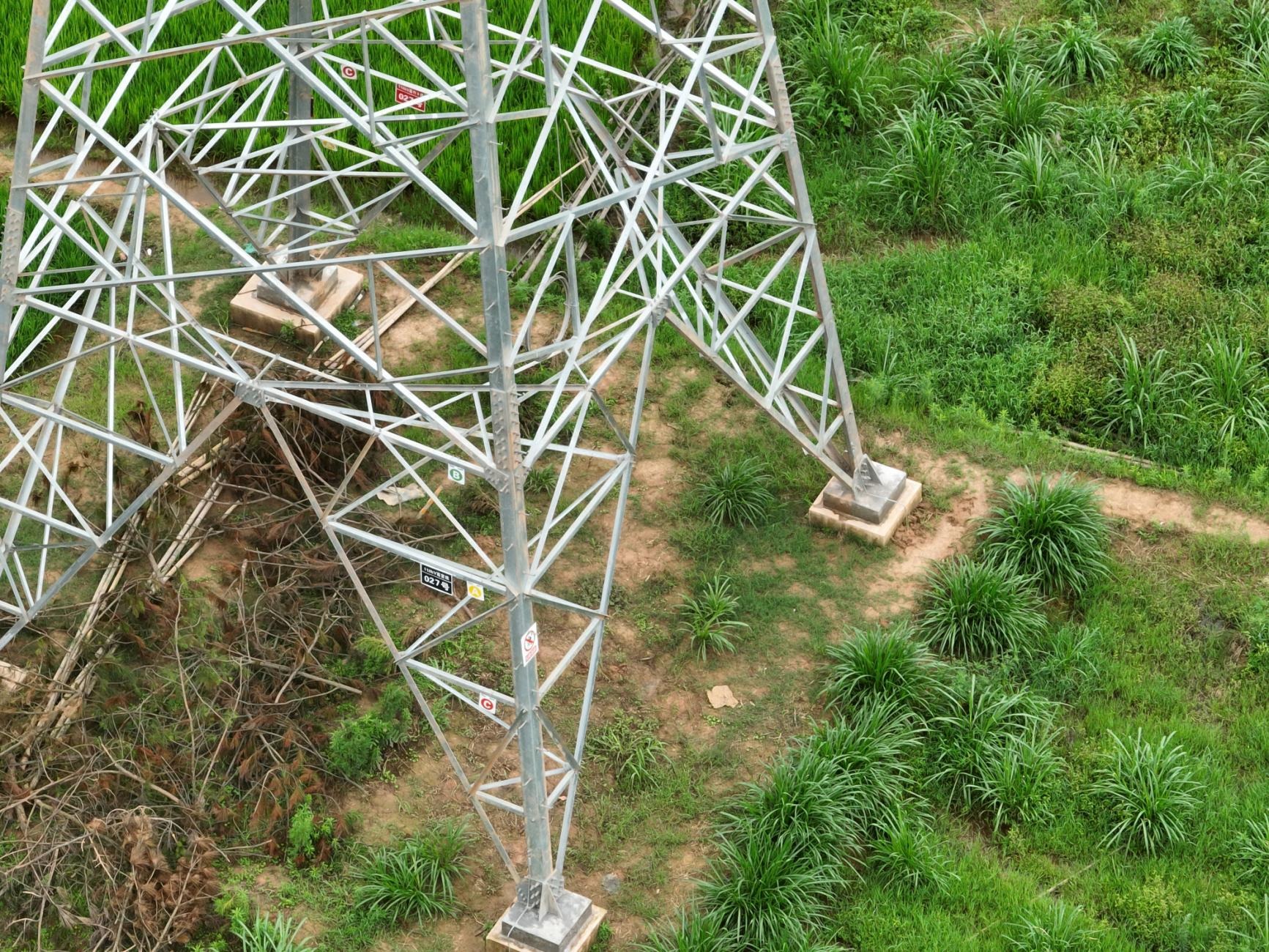

Ji'an Tianyu 220kV Transmission & Transformation Project – 110kV Outgoing Works field record 4 — Tower connection detail
